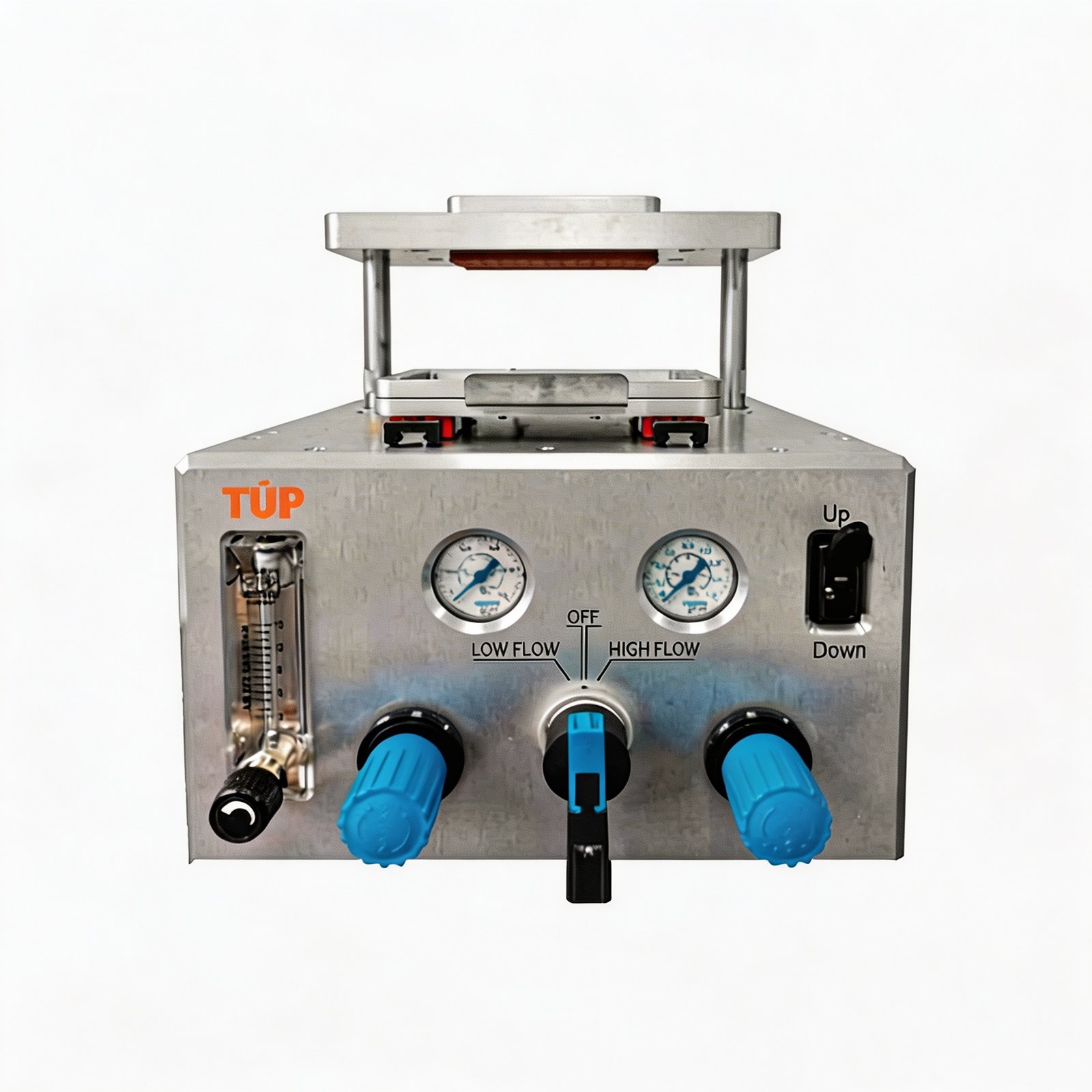

96 Well Plate Positive Pressure Manifold
The 96 Well Plate Positive Pressure Manifold is a laboratory device designed for the efficient and reliable processing of most 96-well plates. Unlike traditional vacuum manifolds that rely on negative pressure to draw liquids through the media, this system uses controlled, inert gas pressure (typically nitrogen or air) applied uniformly from above the wells. It is an essential tool for high-throughput workflows in pharmaceutical, clinical, and biological laboratories, particularly for applications such as solid phase extraction (SPE), protein precipitation, and filtration assays.
Get A Quote
暂无内容
| Parameter Category (English) | Specification |
|---|---|
| Product Number | M24-0001 |
| Output Working Pressure | Low Level: 0-1Bar; High Level: 0-10 Bar |
| Input Gas Supply Pressure | 0.3-0.7 MPa |
| Pressure Uniformity | Well-to-well variation ≤ ±10% |
| Compatible Consumables | 96-Well Extraction Plate & Micro Plate |
| Operation Mode | Pneumatic control, no power supply required |
| Dimensions (WDH) | 43*29*34 cm |
